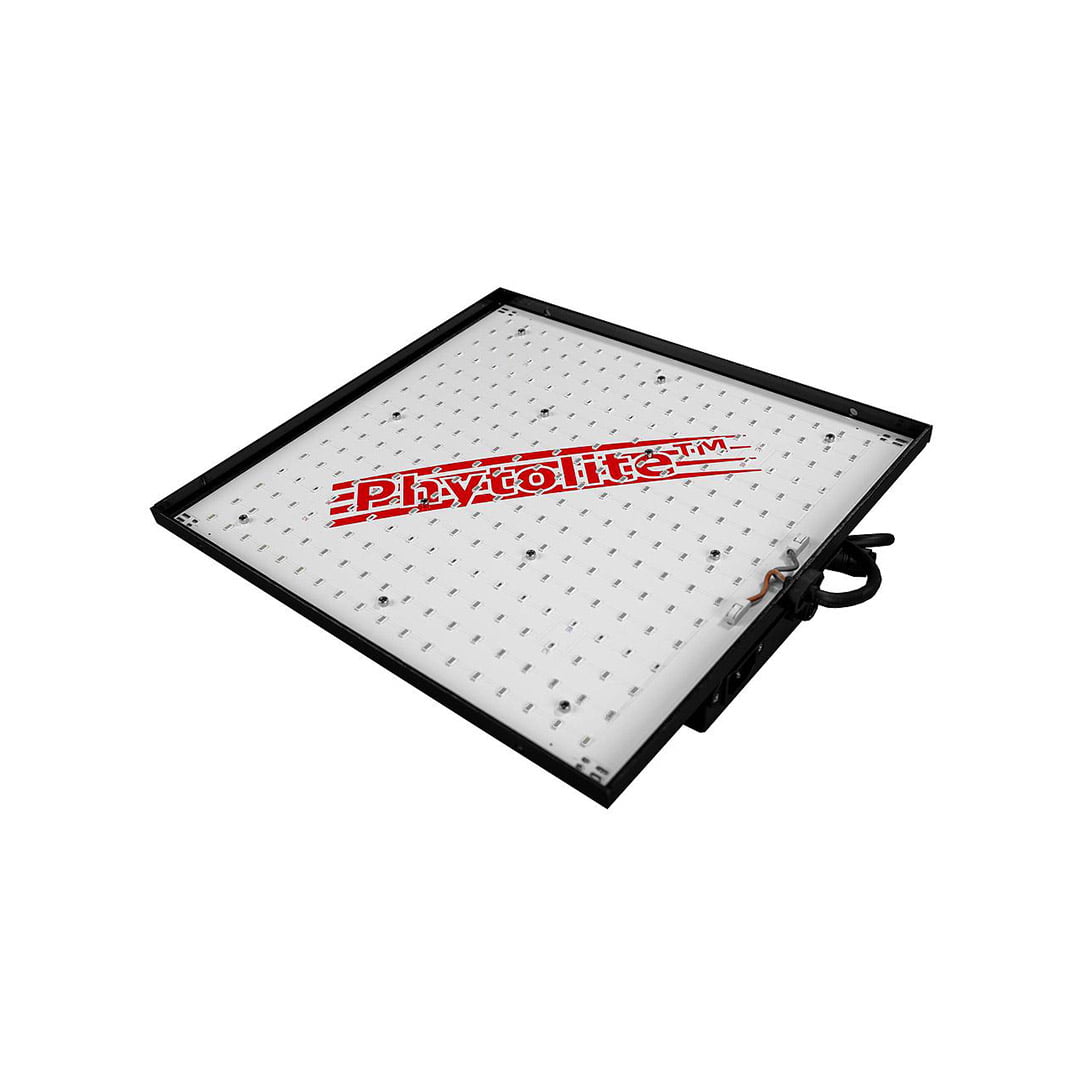

Resina QBoard 120W
279,00€
Resina QBoard 120W
279,00€
Dear customer, to place your Phytolite order, you will need to proceed on the following e-commerce sites:
If you are a reseller:
IF YOU ARE AN END CUSTOMER:
PhytoLED Q-Board is a professional product line for indoor and greenhouse horticulture designed by Phytolite and manufactured with quality and proven components.
SMD technology, Samsung’s red 300K and 660nm LED chips, and combined UV and IR radiation offer a full spectrum from vegetative to flowering.
Dimmable power supply functions allow dimming to 25%, 50% 75% and 100%.
Passive cooling, silent operation, aluminium frame, shock resistant, low power consumption and high emissivity, ultra slim design are some of the technical features of this line.
Explore the models and find the right product for your grow room
- Additional information
- Usage information
- Emission information
- Spectrum
- Technical information
- Shipping content included
- Additional info
Usage information
| Recommended area | 80×80 max 100×100 |
| Power consumed | 120W |
| Recommended dist. plant top | 30/100cm |
| Dimmable | Yes |
| Controller | Optional |
| Sugg. N. Plants (dep. size) | 1 to 4 |
| HPS equivalent | 250W |
| Warranty | 3 years |
Emission information
| Efficacy | 2.8 µmols/joule |
| PPF PPFD 60 cm | 244 262 |
| PPFD 90 cm | 158 |
| Spectrum | Full Spectrum |
| Beam angle (light distribution) | 120° |
Spectrum
| Samsung 3000K | 176 pcs |
| Samsung 5000K | 72 pcs |
| Epistar R660nm | 32 pcs |
| IR 730nm | 4 pcs |
| UV 395nm | 4 pcs |
Technical information
| Mounting height | 20/80 cm |
| Fixture weight | 2,8 kg |
| Fixture dimension | 32 x 300 x 20 |
| Dimming | Yes, Mean Well |
| Thermal management | Passive |
| Lifetime | 70.000 Hrs |
| Input Voltage | 120/265V |
| Power consumed | 120W |
| Amperage | 0.545A/220V |
| Aluminium PCB | 2.0 mm |
Shipping content included
| KPlug and grow LED board |
| Mean Well dimmable power supply |
| Rope ratchets hangers (2 couples) |
| Electric power cable |
| RJ 11 cable (for remote control) |
Additional info
| Weight | 2.8 Kg |
| Dimensions | 32 x 30 x 20 cm |
| Type | LED Boards |
| Budget | Professional |
| Usage | Full Cycle |
